干旱气象 ›› 2022, Vol. 40 ›› Issue (6): 933-944.DOI: 10.11755/j.issn.1006-7639(2022)-06-0933
沙宏娥1(), 傅朝1(
), 刘维成1, 徐丽丽1, 刘娜1, 刘新雨2, 马绎皓1
收稿日期:
2022-08-24
修回日期:
2022-10-21
出版日期:
2022-12-31
发布日期:
2023-01-10
通讯作者:
傅朝
作者简介:
沙宏娥(1982—),女,高级工程师,主要从事强对流天气预报及研究. E-mail:shahonge@163.com。
基金资助:
SHA Honge1(), FU Zhao1(
), LIU Weicheng1, XU Lili1, LIU Na1, LIU Xinyu2, MA Yihao1
Received:
2022-08-24
Revised:
2022-10-21
Online:
2022-12-31
Published:
2023-01-10
Contact:
FU Zhao
摘要:
2022年7月15日地处西北东部半干旱区的甘肃庆阳出现特大暴雨,多站日雨量和小时雨量均突破历史极值,利用多源观测资料和ERA5再分析资料,针对这次特大暴雨过程形成机制进行分析。结果表明,本次过程是发生在黄土高原复杂地形下弱天气尺度斜压强迫、弱不稳定能量及深厚湿层背景下的暖区暴雨,局地性强、强降水持续时间长;南亚高压、副热带高压及低层气压系统上下叠加的环流形势配置有利于中尺度对流系统发生发展;地面辐合线和偏南低空急流触发对流系统初生、发展,低空急流的发展和长时间维持使地面辐合线不断加强,同时急流左侧(暴雨区)与其出口区和入口区右侧形成的稳定次级环流是对流系统维持的关键,而凝结潜热释放引发的局地锋生、低层正涡度发展则是对流系统发展维持的另一重要因素,同时也是大气不稳定度维持的重要原因。中尺度对流系统呈现深厚低质心、准静止特征,雷达回波具有后向传播和列车效应特征。
中图分类号:
沙宏娥, 傅朝, 刘维成, 徐丽丽, 刘娜, 刘新雨, 马绎皓. 西北东部半干旱区一次极端特大暴雨的触发和维持机制[J]. 干旱气象, 2022, 40(6): 933-944.
SHA Honge, FU Zhao, LIU Weicheng, XU Lili, LIU Na, LIU Xinyu, MA Yihao. Mechanism of trigger and maintenance during an extremely torrential rain in semi-arid region of eastern Northwest China[J]. Journal of Arid Meteorology, 2022, 40(6): 933-944.

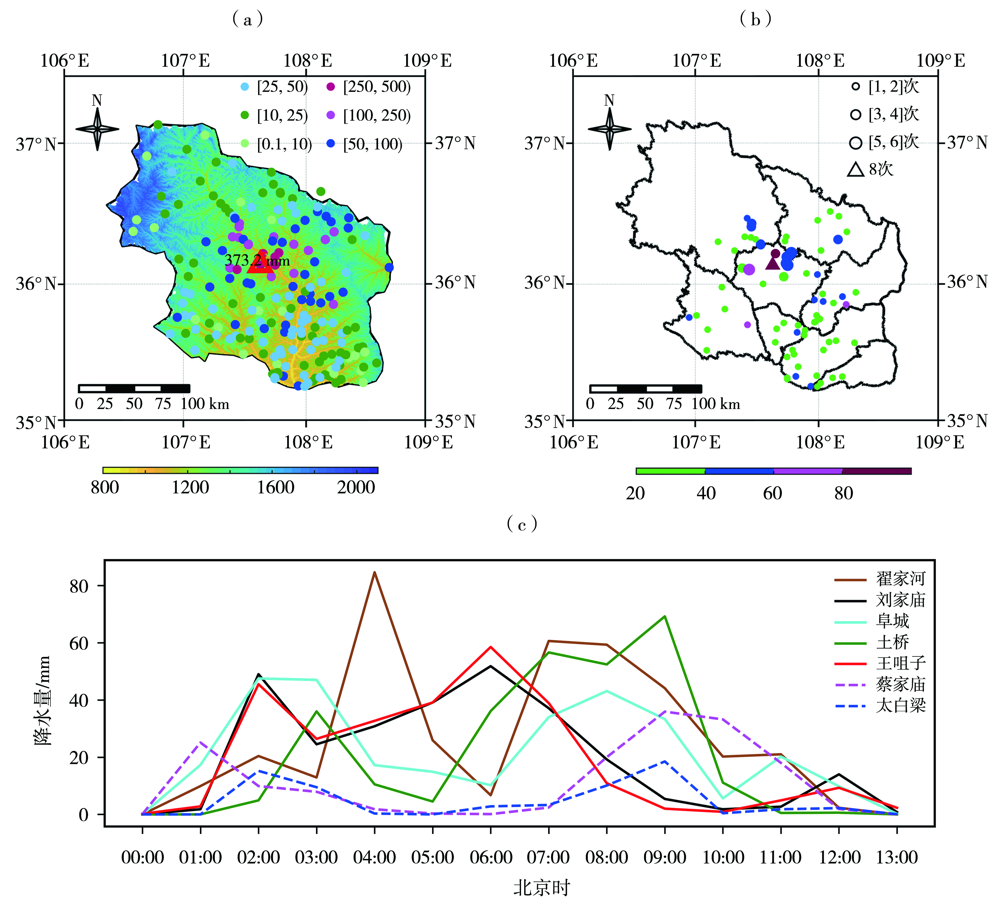

图1 2022年7月14日20:00至15日20:00庆阳市累积降水量(a,彩色圆点,单位:mm;填色为地形高度,单位:m;红三角为翟家河站)、短时强降水(填色为最大小时雨量,单位:mm;圆圈为发生次数,三角为最大次数)分布(b)及15日00:00—13:00代表站小时降水量演变(c)
Fig.1 The distribution of accumulated precipitation (a, color dots, Unit: mm;the color shaded for the terrain height, Unit: m; the red triangle for Zhaijiahe station) and short-term heavy precipitation (the color shaded for maximum hourly precipitation, Unit: mm; the circles for heavy rainfall frequency, the triangle is the maximum frequency) (b) from 20:00 BST 14 to 20:00 BST 15 July 2022 in Qingyang and the evolution of hourly rainfall at representative stations from 00:00 BST to 13:00 BST 15 July 2022 (c)

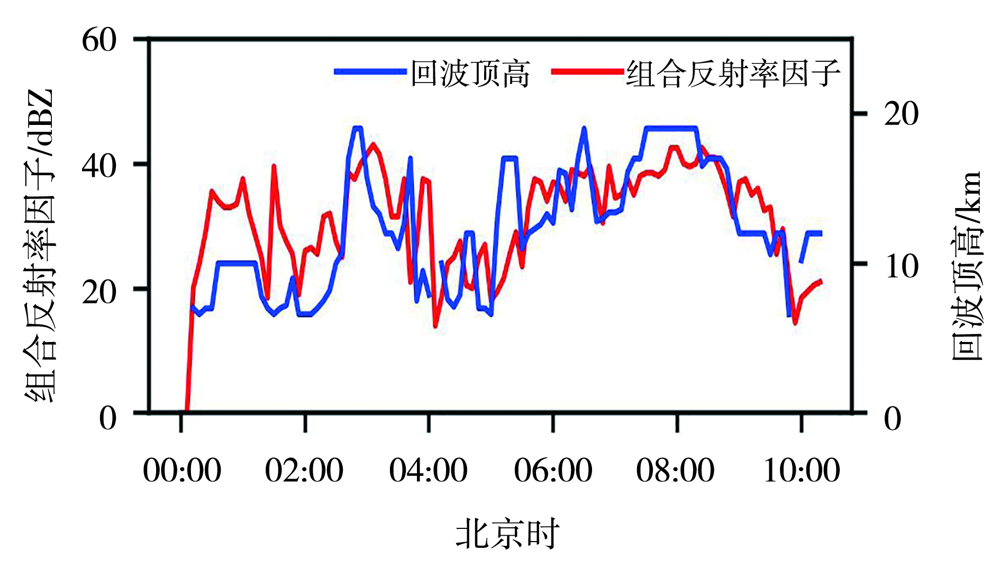

图3 2022年7月15日00:00—11:00翟家河站雷达回波顶高及组合反射率因子演变
Fig.3 The evolution of radar echo top height and composite reflectivity factor over Zhaijiahe station from 00:00 BST to 11:00 BST July 15, 2022
图4 2022年7月15日雷达组合反射率因子时间演变(单位:dBZ) (红色标识为特大暴雨站点,其中三角为翟家河站)
Fig.4 The evolution of radar composite reflectivity factor on July 15, 2022 (Unit: dBZ) (The red marks are torrential rain stations, among which the triangle is Zhaijiahe station)
图6 2022年7月14日20:00至15日08:00翟家河站相对湿度(a,单位:%)与水汽通量散度(b,单位:10-7g·hPa-1·cm-2·s-1)的时间-高度剖面,7月15日05:00 700 hPa水汽通量(c,单位:g·hPa-1·cm-1·s-1)
Fig.6 The time-height profiles of relative humidity (a, Unit: %) and water vapor flux divergence (b, Unit: 10-7g·hPa-1·cm-2·s-1) over Zhaijiahe station from 20:00 BST July 14 to 08:00 BST July 15, and water vapor flux at 05:00 BST July 15, 2022 at 700 hPa (c, Unit: g·hPa-1·cm-1·s-1)

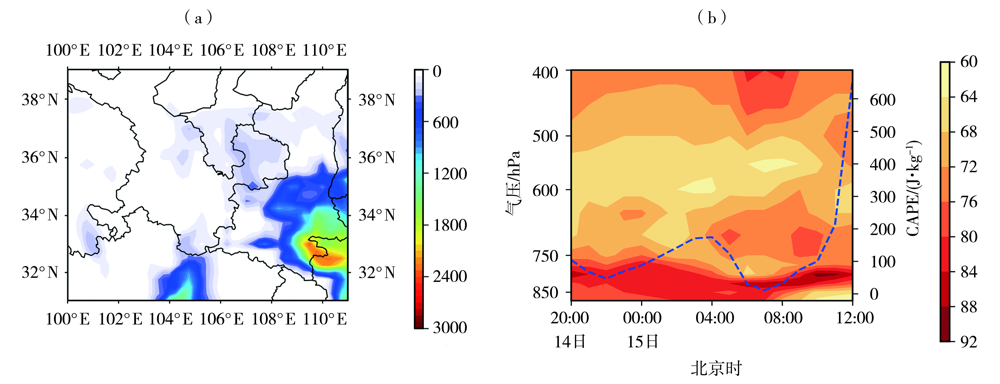

图7 2022年7月15日04:00西北地区东部 CAPE(单位:J·kg-1)分布(a)与翟家河站14日20:00至15日12:00假相当位温(填色区,单位:℃)的高度-时间剖面及CAPE随时间变化(虚线)(b)
Fig.7 The distribution of CAPE (Unit: J·kg-1) at 04:00 BST July 15, 2022 over the eastern region of Northwest China (a), the time-height profile of pseudo-equivalent potential temperature (the color shaded, Unit: ℃) and the CAPE change with time(the dotted line) from 20:00 BST July 14 to 12:00 BST July 15, 2022 at Zhaijiahe station (b)

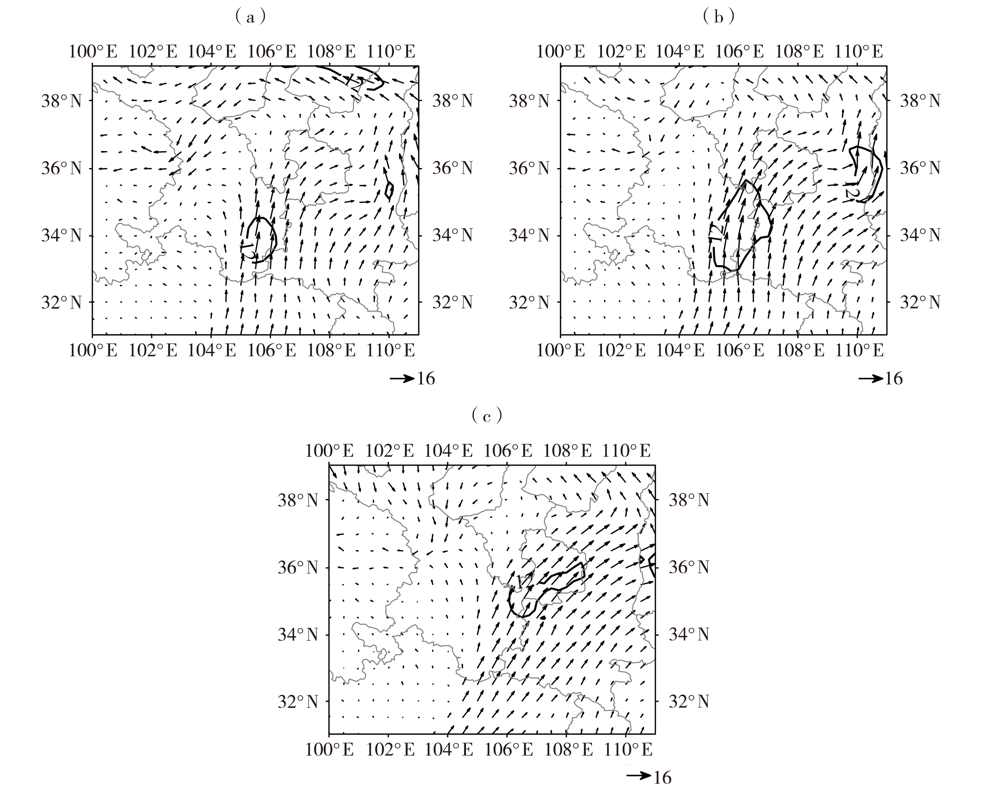

图9 2022年7月14日21:00(a)和15日01:00(b)、06:00(c)700 hPa风场(矢量,单位:m·s-1) (黑色线条为12 m·s-1等风速线)
Fig.9 The wind field at 700 hPa at 21:00 BST July 14 (a), 01:00 BST (b) and 06:00 BST (c) July 15, 2022 (vectors, Unit: m·s-1) (the black line for the 12 m·s-1 wind speed isoline)
图10 2022年7月14日21:00(a)和15日01:00(b)地面风场(矢量,单位:m·s-1)、流场(白色箭头线,为风场插值结果)及地形高度(填色,单位:m)
Fig.10 The surface wind field (vectors, Unit: m·s-1), stream field (the white lines with arrow, the result of wind field interpolation) and terrain height (the color shaded, Unit: m) at 21:00 BST July 14 (a) and 01:00 BST July 15, 2022 (b)

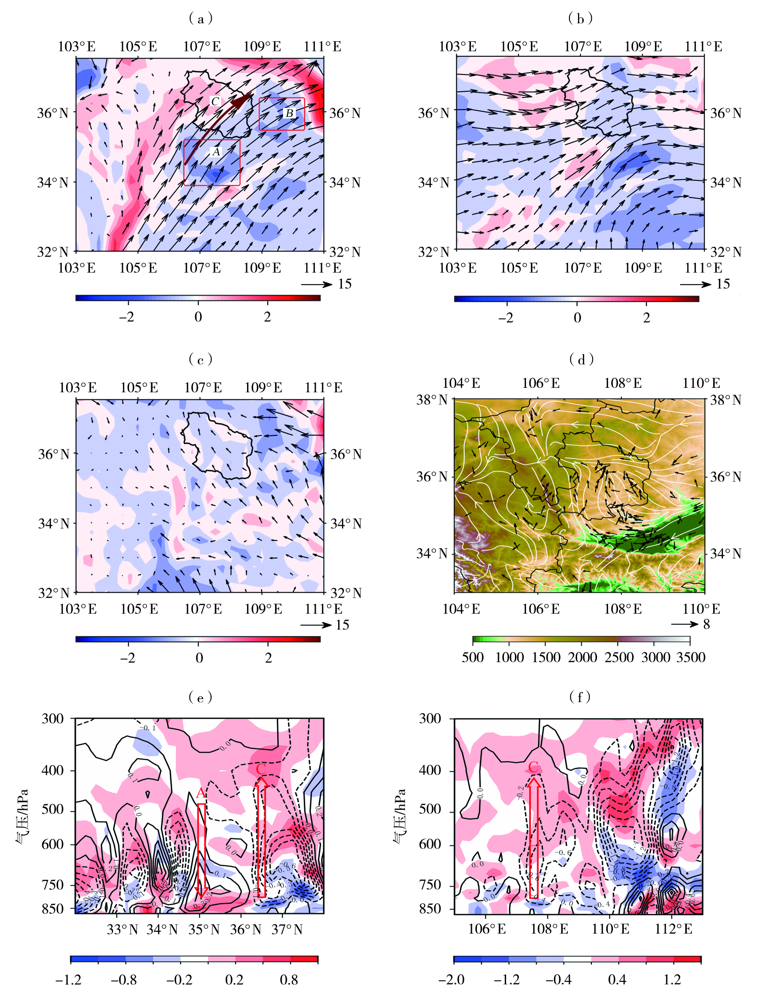

图11 2022年7月15日06:00 700 hPa(a)和500 hPa(b)涡度(填色,单位:10-4 s-1)及风场(矢量,单位:m·s-1)、850 hPa散度(填色,单位:10-4 s-1)及风场(矢量,单位:m·s-1)(c)和15日04:00地面风场(矢量,单位:m·s-1)及地形高度(填色区,单位:m)(d)以及沿107.5°E(e)与沿36.5°N(f)的散度(填色,单位:10-4s-1)及垂直速度(等值线,单位:Pa·s-1)垂直剖面 (棕色箭头为低空急流,红色矩形区为低空急流入口区右侧和出口区右侧负涡度平流区,黑色线包围区域为庆阳市)
Fig.11 The 700 hPa (a) and 500 hPa (b) vorticity (the color shaded, Unit: 10-4 s-1) and wind field (vectors, Unit: m·s-1) and the divergence (the color shaded, Unit: 10-4 s-1) and wind field (vectors, Unit: m·s-1) at 850 hPa (c) at 06:00 BST July 15,2022, the surface wind field (vectors, Unit: m·s-1) and terrain height (the color shaded, Unit: m) at 04:00 BST July 15, 2022 (d), the zonal vertical section along 107.5°E (e) and the meridional vertical section along 36.5°N (f) of divergence(the color shaded, Unit: 10-4 s-1) and vertical velocity (isolines, Unit: Pa·s-1) (The brown arrow line is low-level jet, and the red rectangular regions are negative vorticity advection areas on the right side of the entrance and the exit of low-level jet,and the area enclosed by black line is Qingyang)
图12 2022年7月15日00:00—14:00翟家河站凝结潜热加热率(虚线)及垂直速度(填色,单位:Pa·s-1)逐时变化
Fig.12 The hourly variation of heating rate of latent heat of condensation (the dotted line) and vertical velocity (the color shaded, Unit: Pa·s-1) over Zhaijiahe station from 00:00 BST to 14:00 BST July 15, 2022
