基于干旱和水位特征构建水库人工增雨需求指数

doi:10.11755/j.issn.1006-7639(2023)-02-0341

摘要/Abstract

摘要：

为定量化描述水库人工增雨需求，以浙江兰溪芝堰水库为研究对象，基于降水、径流和水位历史观测数据，采用实际概率分布阈值法确定逐月不同等级水库水位指标（Water Level Index， WLI）百分位阈值，通过熵权法联合表征气象干旱的标准化降水指数（Standardized Precipitation Index， SPI）和表征水文干旱的标准化径流指数（Standardized Streamflow Index， SSI）构建水库整体干旱指数（Drought Index， DI），综合WLI和DI构建水库人工增雨需求指数（Demand Level Index， DLI）等级，研究WLI、DI和DLI时间特征，结合水库历史记录分析DLI的适用性，结果表明：（1）确定的逐月不同等级WLI百分位阈值能够精细化表征水库在一年内不同时期的缺水程度。（2）1990—2019年气象干旱无明显变化，水文干旱程度加大，其中春季变旱趋势最明显。（3）气象（水文）干旱在夏秋季发生总频率为33.9%（35.0%），高于冬春两季的30.0%（28.3%）。重、特旱在春季的发生频率最高，气象和水文干旱发生频率分别为11.2%和10.0%。水文干旱与气象干旱的时滞性不明显，水文干旱平均历时和平均烈度均高于气象干旱，具有更高的危害性。（4）不同等级的DLI年际分布与WLI较为相近，季节分布与DI分布相似。与2004年之前相比，2004年之后增雨需求出现更为频繁，持续存在时间更长。增雨需求在夏季占比最高，为40.0%，但高度、强烈增雨需求在春季占比最高，为14.4%。（5）构建的DLI等级可以较好地表征水库实际需求，当DLI等级大于等于4持续多个月时，水库可能会出现用水紧张并应采取相关紧急措施。

关键词: 水库增蓄, 人工增雨, 需求指数, 水文干旱, 气象干旱

Abstract:

In order to provide a quantitative method to describe artificial precipitation demand, taking Zhiyan reservoir in Lanxi as the research object, based on precipitation, runoff and water level data, the percentile threshold of monthly water level index (WLI) with different grades of the reservoir was derived from real sample probability distribution of water level, the drought index (DI) was constructed by using the entropy weight method combined with the standardized precipitation index (SPI) and the standardized streamflow index (SSI), then WLI was integrated with DI to generate the demand level index (DLI) to describe artificial precipitation demand of reservoir objectively. The temporal characteristics of WLI, DI and DLI were studied, the applicability of DLI was analyzed based on the reservoir history records, the main conclusions are as follows: (1) The constructed percentile threshold of monthly WLI with different grades was able to reflect the water shortage of the reservoir precisely in different periods of a year. (2) There was no significant change in meteorological drought from 1990 to 2019, meanwhile hydrological drought showed an increasing trend, and the increasing trend was most obvious in spring. (3) The total occurrence frequency of meteorological (hydrological) drought in summer and autumn was 33.9% (35.0%), it is higher than that （30.0% (28.3%)） in winter and spring. The occurrence frequency of severe and extreme drought in spring was the highest, and meteorological and hydrological drought accounted for 11.2% and 10.0% respectively in spring. Hydrological drought did not lag behind and had a more serious effect than meteorological drought. (4) The inter-annual distribution of DLI was similar to that of WLI, and the seasonal distribution of DLI was similar to that of DI. Artificial precipitation demand appeared more frequently and last longer in the years after 2004 than before 2004. Demand occurred most frequently in summer, accounting for 40.0%, however the demand of high and very high level occurred most frequently in spring, accounting for 14.4%. (5) The integrated DLI grades could well reflect the actual demand of the reservoir, and when DLI grade was greater than or equal to 4 for several months, the reservoir might be short of water and emergency measures required to be taken.

Key words: reservoir storage increasing, artificial precipitation, demand level index, hydrological drought, meteorological drought

中图分类号:

P481

姜舒婕, 程莹, 方楠, 周毓荃, 单中华, 张磊. 基于干旱和水位特征构建水库人工增雨需求指数[J]. 干旱气象, 2023, 41(2): 341-349.

JIANG Shujie, CHENG Ying, FANG Nan, ZHOU Yuquan, SHAN Zhonghua, ZHANG Lei. Construction of artificial precipitation demand level index of the reservoir based on drought and water level characteristics[J]. Journal of Arid Meteorology, 2023, 41(2): 341-349.

图/表 11

表1 WLI等级划分

Tab.1 Classification of WLI grades

WLI等级	百分位值
1	（60%，100%]
2	（30%，60%]
3	（15%，30%]
4	（5%，15%]
5	（0，5%]

表2 SPI和SSI等级分类

Tab.2 Classification of standardized precipitation index and standardized streamflow index grades

干旱等级	干旱分类	$S P I$ 值	$S S I$ 值
1	无旱	-0.5<SPI	-0.5<SSI
2	轻旱	-1<SPI≤-0.5	-1< SSI≤-0.5
3	中旱	-1.5<SPI≤-1	-1.5< SSI≤-1
4	重旱	-2.0<SPI≤-1.5	-2.0< SSI≤-1.5
5	特旱	SPI≤-2.0	SSI≤-2.0

表2 SPI和SSI等级分类

Tab.2 Classification of standardized precipitation index and standardized streamflow index grades

干旱等级	干旱分类	$S P I$ 值	$S S I$ 值
1	无旱	-0.5<SPI	-0.5<SSI
2	轻旱	-1<SPI≤-0.5	-1< SSI≤-0.5
3	中旱	-1.5<SPI≤-1	-1.5< SSI≤-1
4	重旱	-2.0<SPI≤-1.5	-2.0< SSI≤-1.5
5	特旱	SPI≤-2.0	SSI≤-2.0

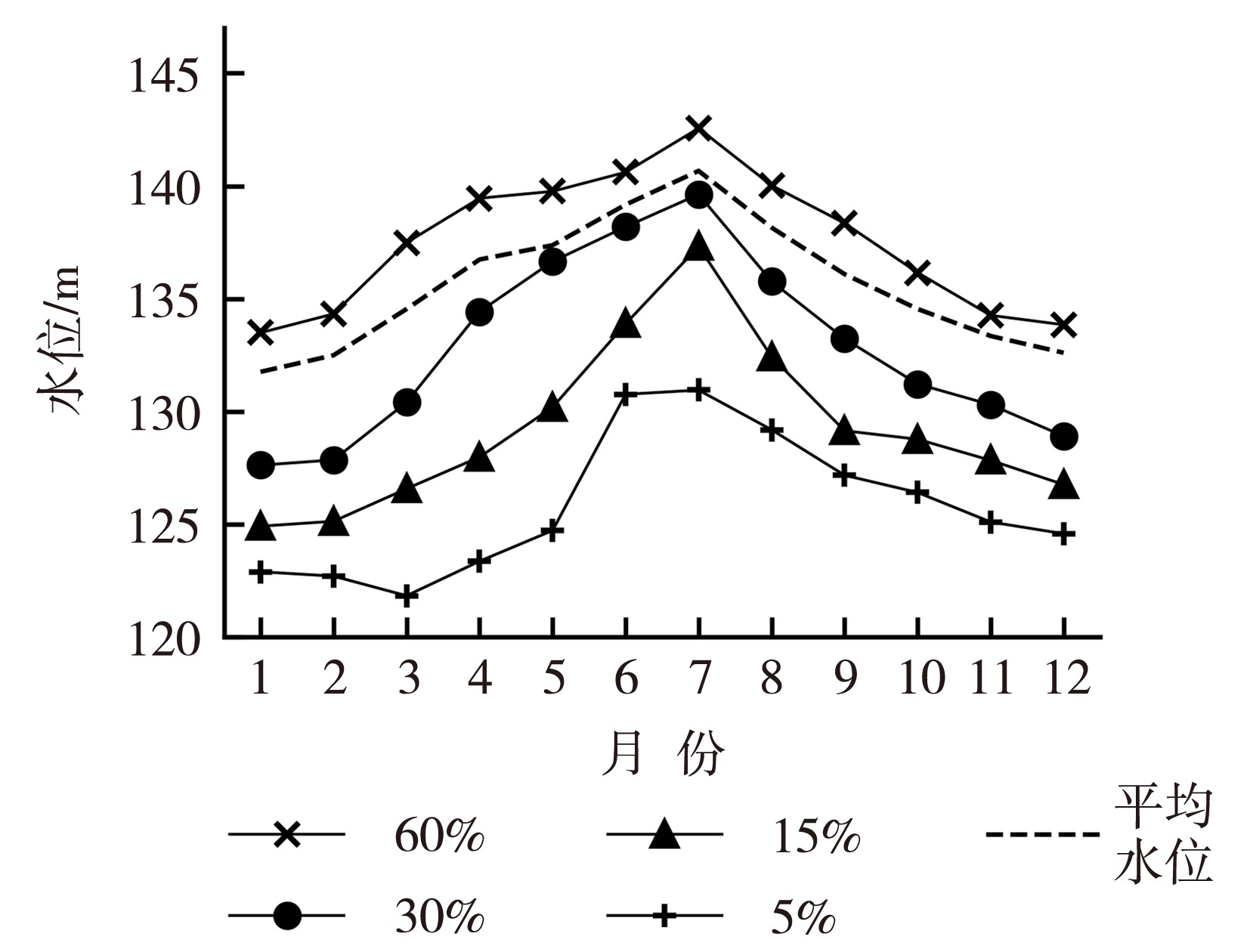

图1 兰溪芝堰水库不同等级WLI的百分位阈值和平均水位月际变化

Fig.1 Monthly variation of average water level and percentile threshold of WLI with different grades in Zhiyan reservoir in Lanxi

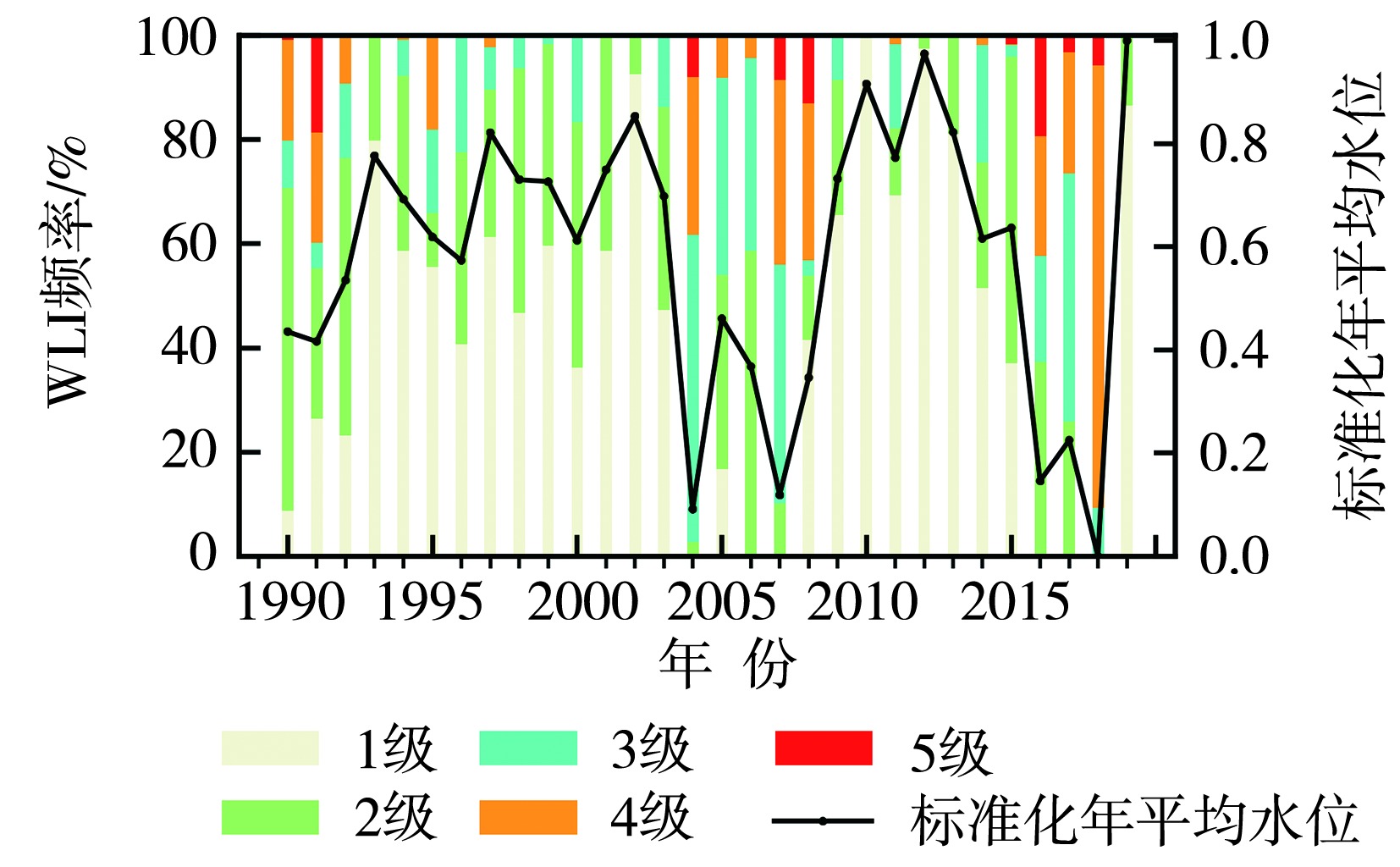

图2 1990—2019年不同等级WLI频率年际分布和标准化年平均水位

Fig.2 The inter-annual distribution of frequency of WLI with different grades and normalized annual mean water level from 1990 to 2019

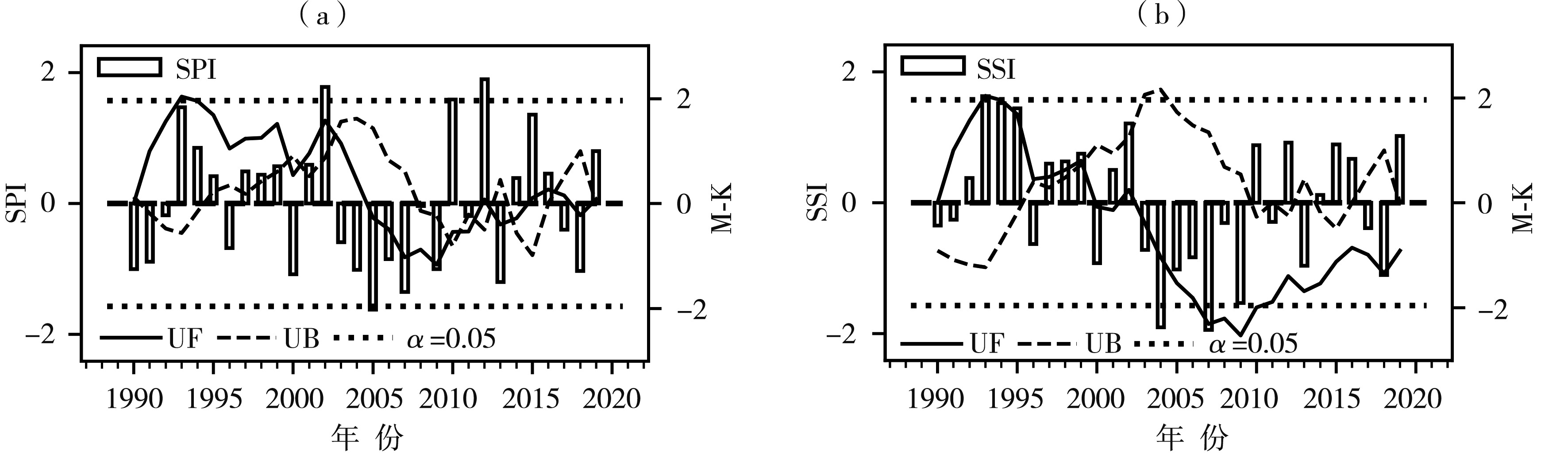

图3 1990—2019年12个月时间尺度SPI（a）和SSI（b）年际变化及M-K检验

Fig.3 The inter-annual variation of SPI （a）， SSI （b） at 12 month time scale and M-K test from 1990 to 2019

图4 1990—2019年不同等级气象干旱发生频率年际分布和标准化年降水（a），不同等级水文干旱发生频率年际分布和标准化年入流（b）

Fig.4 The inter-annual distribution of occurrence frequency of meteorological drought with different grades and normalized annual precipitation (a), inter-annual distribution of occurrence frequency of hydrological drought with different grades and normalized annual inflow (b) from 1990 to 2019

图5 1990—2019年不同等级气象（a、c）、水文（b、d）干旱发生频率季节（a、b）及月际（c、d）分布

Fig.5 Seasonal （a，b） and monthly （c，d） distribution of occurrence frequency of meteorological （a，c） and hydrological （b，d） drought with different grades from 1990 to 2019

表3 DI等级分类

Tab.3 Classification of DI grades

干旱等级	干旱分类	$D I$ 值
1	无旱	-0.5<DI
2	轻旱	-1< DI≤-0.5
3	中旱	-1.5< DI≤-1
4	重旱	-2.0< DI≤-1.5
5	特旱	DI≤-2.0

表3 DI等级分类

Tab.3 Classification of DI grades

干旱等级	干旱分类	$D I$ 值
1	无旱	-0.5<DI
2	轻旱	-1< DI≤-0.5
3	中旱	-1.5< DI≤-1
4	重旱	-2.0< DI≤-1.5
5	特旱	DI≤-2.0

表4 DLI等级与增雨需求程度对应表

Tab.4 The demand level index grades and corresponding demand degree of artificial precipitation enhancement

DLI等级	WLI等级	DI等级	增雨需求程度
1	1~2	1~2	无需求
2	1	3~5	轻度需求
	2	3
	3	1~2
3	2	4~5	中度需求
3	3	3~4	中度需求
4	3	5	高度需求
	4	1~3
	5	1
5	4	4~5	强烈需求
5	5	2~5	强烈需求

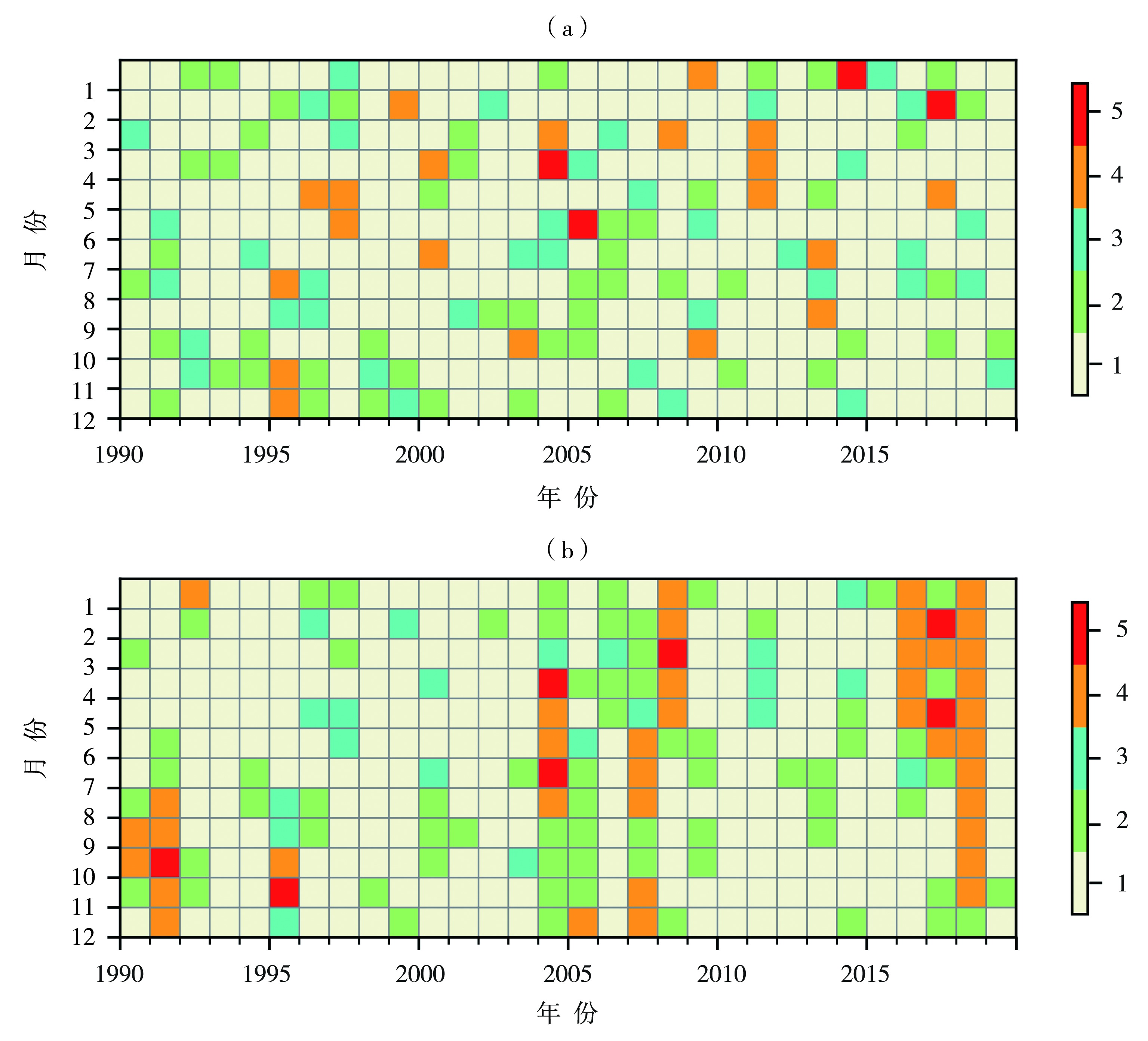

图6 1990年1月至2019年12月逐月不同等级DI（a）和DLI（b）分布

Fig.6 Monthly distribution of DI （a） and DLI （b） with different grades from January 1990 to December 2019

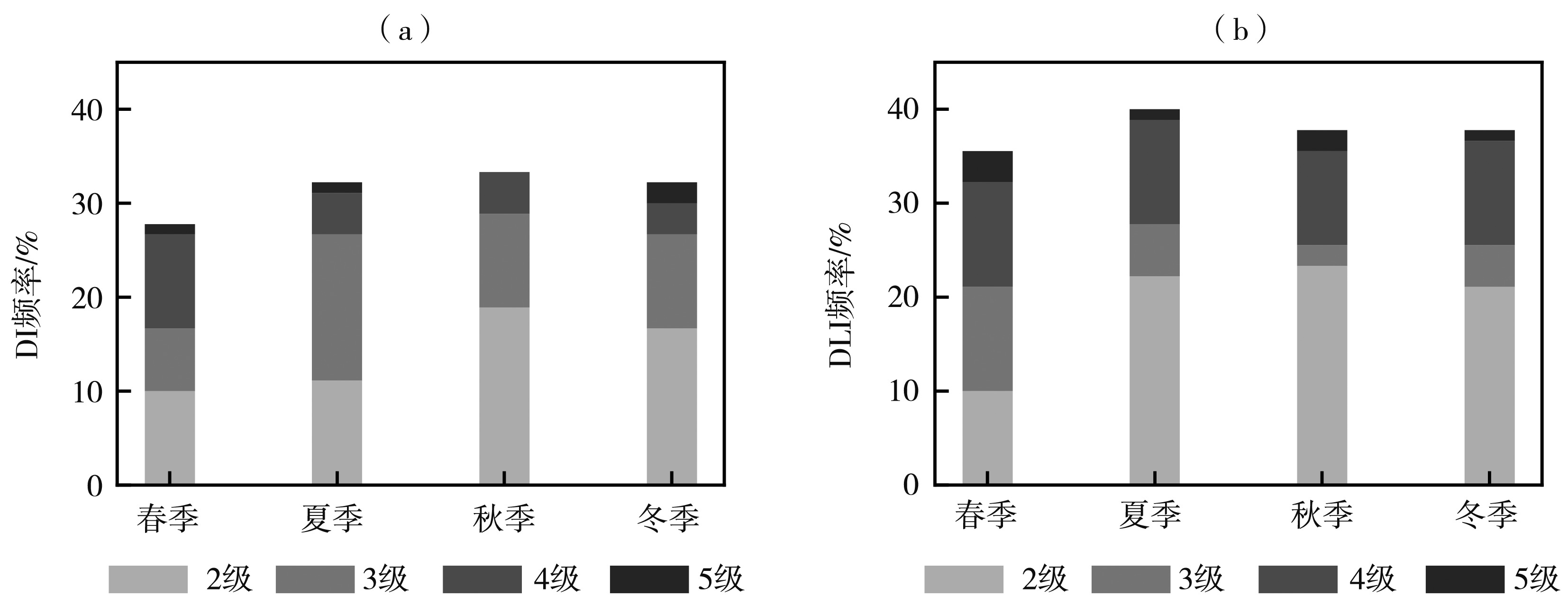

图7 1990—2019年不同等级DI（a）和DLI（b）频率季节分布

Fig.7 Seasonal distribution of frequency of DI （a） and DLI （b） with different grades from 1990 to 2019
