Journal of Arid Meteorology ›› 2026, Vol. 44 ›› Issue (2): 189-199.DOI: 10.11755/j.issn.1006-7639-2026-02-0189
• Articles • Previous Articles Next Articles
GAO Na1,2(
), WANG Suyan1,2(
), LI Xin1,2, GAO Ruina1,2, WANG Dai1,2
Received:2025-11-22
Revised:2026-02-01
Online:2026-05-20
Published:2026-05-18
高娜1,2(
), 王素艳1,2(
), 李欣1,2, 高睿娜1,2, 王岱1,2
通讯作者:
王素艳
作者简介:高娜(1987—),女,汉族,硕士,工程师,主要从事气候变化研究。E-mail: gn198779@163.com。
基金资助:CLC Number:
GAO Na, WANG Suyan, LI Xin, GAO Ruina, WANG Dai. Identification and evolution characteristics of sub-seasonal drought-flood abrupt alternation events in Ningxia[J]. Journal of Arid Meteorology, 2026, 44(2): 189-199.
高娜, 王素艳, 李欣, 高睿娜, 王岱. 宁夏次季节旱涝急转事件识别及演变特征[J]. 干旱气象, 2026, 44(2): 189-199.
Add to citation manager EndNote|Ris|BibTeX
URL: http://www.ghqx.org.cn/EN/10.11755/j.issn.1006-7639-2026-02-0189
| 强度 | 所占比重 | 累积频率 |
|---|---|---|
| 重度 | 5 | ≤5 |
| 中度 | 25 | >5~30 |
| 轻度 | 75 | >30~100 |
Tab.1 Intensity classification of drought-flood abrupt alternation events in Ningxia from 1961 to 2023
| 强度 | 所占比重 | 累积频率 |
|---|---|---|
| 重度 | 5 | ≤5 |
| 中度 | 25 | >5~30 |
| 轻度 | 75 | >30~100 |
| Pa30监测的干旱事件 | 同期CI监测 | 同期降水监测 | 历史记载(宁夏回族自治区气象局, | |||
|---|---|---|---|---|---|---|
| 站点 | 开始日期 | 结束日期 | 降水距平 百分率/% | 过程无雨日数/d | ||
| 惠农 | 2005-04-30 | 2005-09-19 | 重旱 | -77.0 | 123 | 2004年9月至2005年年末,宁夏北部引黄灌区出现有气象记录以来最为严重的气象干旱 |
| 陶乐 | 2005-04-30 | 2005-09-19 | 重旱 | -72.0 | 121 | |
| 陶乐 | 2015-05-03 | 2015-09-07 | 重旱 | -75.2 | 104 | 全区出现干旱,大部地区达特旱 |
| 海原 | 2008-05-11 | 2008-09-07 | 特旱 | -59.7 | 94 | 中部干旱带和南部山区旱情发展迅速 |
| 中宁 | 2020-04-30 | 2020-08-03 | 特旱 | -81.8 | 79 | 各地遭受不同程度旱灾 |
| 惠农 | 2011-04-30 | 2011-08-20 | 重旱 | -56.4 | 98 | 全区严重春夏连旱 |
| 惠农 | 2001-05-23 | 2001-08-29 | 重旱 | -55.6 | 78 | 中南部地区遭受春夏连旱 |
| 永宁 | 1994-05-11 | 1994-08-03 | 重旱 | -66.0 | 69 | 夏粮受旱严重呈减产趋势 |
Tab.2 Drought events identified by Pa30, along with historical records, CI monitoring, and precipitation monitoring during the same periods
| Pa30监测的干旱事件 | 同期CI监测 | 同期降水监测 | 历史记载(宁夏回族自治区气象局, | |||
|---|---|---|---|---|---|---|
| 站点 | 开始日期 | 结束日期 | 降水距平 百分率/% | 过程无雨日数/d | ||
| 惠农 | 2005-04-30 | 2005-09-19 | 重旱 | -77.0 | 123 | 2004年9月至2005年年末,宁夏北部引黄灌区出现有气象记录以来最为严重的气象干旱 |
| 陶乐 | 2005-04-30 | 2005-09-19 | 重旱 | -72.0 | 121 | |
| 陶乐 | 2015-05-03 | 2015-09-07 | 重旱 | -75.2 | 104 | 全区出现干旱,大部地区达特旱 |
| 海原 | 2008-05-11 | 2008-09-07 | 特旱 | -59.7 | 94 | 中部干旱带和南部山区旱情发展迅速 |
| 中宁 | 2020-04-30 | 2020-08-03 | 特旱 | -81.8 | 79 | 各地遭受不同程度旱灾 |
| 惠农 | 2011-04-30 | 2011-08-20 | 重旱 | -56.4 | 98 | 全区严重春夏连旱 |
| 惠农 | 2001-05-23 | 2001-08-29 | 重旱 | -55.6 | 78 | 中南部地区遭受春夏连旱 |
| 永宁 | 1994-05-11 | 1994-08-03 | 重旱 | -66.0 | 69 | 夏粮受旱严重呈减产趋势 |
| 气象站单日降水量监测 | 基于Pa30指标的洪涝事件识别 | ||||
|---|---|---|---|---|---|
| 序号 | 日期 | 单日降水量/mm | 洪涝事件起始日 | 洪涝事件结束日 | 过程降水距平百分率/% |
| 1 | 1978-08-07 | 85.1 | 1978-07-30 | 1978-10-4 | 176.1 |
| 2 | 2006-07-02 | 72.7 | 2006-07-02 | 2006-08-13 | 277.3 |
| 3 | 1967-07-17 | 71.0 | 1967-07-17 | 1967-08-15 | 163.5 |
| 4 | 2012-07-30 | 70.8 | 2012-07-30 | 2012-08-28 | 128.0 |
| 5 | 1977-07-05 | 59.9 | 1977-07-05 | 1977-08-31 | 157.1 |
| 6 | 1985-08-24 | 54.3 | 1985-08-24 | 1985-09-22 | 217.0 |
| 7 | 2006-07-15 | 53.9 | 2006-07-02 | 2006-08-13 | 277.3 |
| 8 | 1998-05-21 | 52.9 | 1998-05-08 | 1998-06-19 | 273.3 |
| 9 | 2002-06-08 | 48.8 | 2002-06-08 | 2002-07-07 | 134.9 |
| 10 | 1995-07-31 | 46.4 | 1995-07-13 | 1995-08-11 | 129.2 |
Tab.3 The top 10 daily precipitation events at Taole Station from 1961 to 2023 (ranked by precipitation) and flood event identification results based on the Pa30 index
| 气象站单日降水量监测 | 基于Pa30指标的洪涝事件识别 | ||||
|---|---|---|---|---|---|
| 序号 | 日期 | 单日降水量/mm | 洪涝事件起始日 | 洪涝事件结束日 | 过程降水距平百分率/% |
| 1 | 1978-08-07 | 85.1 | 1978-07-30 | 1978-10-4 | 176.1 |
| 2 | 2006-07-02 | 72.7 | 2006-07-02 | 2006-08-13 | 277.3 |
| 3 | 1967-07-17 | 71.0 | 1967-07-17 | 1967-08-15 | 163.5 |
| 4 | 2012-07-30 | 70.8 | 2012-07-30 | 2012-08-28 | 128.0 |
| 5 | 1977-07-05 | 59.9 | 1977-07-05 | 1977-08-31 | 157.1 |
| 6 | 1985-08-24 | 54.3 | 1985-08-24 | 1985-09-22 | 217.0 |
| 7 | 2006-07-15 | 53.9 | 2006-07-02 | 2006-08-13 | 277.3 |
| 8 | 1998-05-21 | 52.9 | 1998-05-08 | 1998-06-19 | 273.3 |
| 9 | 2002-06-08 | 48.8 | 2002-06-08 | 2002-07-07 | 134.9 |
| 10 | 1995-07-31 | 46.4 | 1995-07-13 | 1995-08-11 | 129.2 |
| 年份 | 历史记载 |
|---|---|
| 2007 | 2007年宁夏全区气温偏高,大部地区降水持续偏少,中部干旱带出现自有气象记录以来少有的持续异常干旱,造成直接经济损失12.4亿元人民币;夏季全区共出现15次局地暴雨天气,以利通区以南为主,直接经济损失1.6亿元人民币 |
| 2011 | 2011年宁夏全区严重的春夏连旱造成作物大面积减产或绝收,长时间大面积干旱,导致63.1万人饮水困难,造成直接经济损失13.9亿元人民币;8月和9月全区遭受暴雨洪涝灾害6次,共造成直接经济损失约1 065.6万元人民币;9月降水集中在贺兰县以南 |
Tab.4 Disaster characteristics of typical drought-flood abrupt alternation events in Ningxia in 2007 and 2011
| 年份 | 历史记载 |
|---|---|
| 2007 | 2007年宁夏全区气温偏高,大部地区降水持续偏少,中部干旱带出现自有气象记录以来少有的持续异常干旱,造成直接经济损失12.4亿元人民币;夏季全区共出现15次局地暴雨天气,以利通区以南为主,直接经济损失1.6亿元人民币 |
| 2011 | 2011年宁夏全区严重的春夏连旱造成作物大面积减产或绝收,长时间大面积干旱,导致63.1万人饮水困难,造成直接经济损失13.9亿元人民币;8月和9月全区遭受暴雨洪涝灾害6次,共造成直接经济损失约1 065.6万元人民币;9月降水集中在贺兰县以南 |
| 站点 | 干旱事件 | 洪涝事件 | 急转时长/d | ||||
|---|---|---|---|---|---|---|---|
| 开始日期 | 结束日期 | 持续日数/d | 开始日期 | 结束日期 | 持续日数/d | ||
| 同心 | 2007-05-01 | 2007-06-15 | 47 | 2007-06-17 | 2007-07-15 | 29 | 2 |
| 银川 | 2011-06-08 | 2011-08-14 | 98 | 2011-09-02 | 2011-09-15 | 14 | 19 |
Tab.5 Start and end times, durations, and abrupt transition periods of the drought-flood abrupt alternation events in Ningxia in 2007 and 2011 identified based on daily Pa30 values
| 站点 | 干旱事件 | 洪涝事件 | 急转时长/d | ||||
|---|---|---|---|---|---|---|---|
| 开始日期 | 结束日期 | 持续日数/d | 开始日期 | 结束日期 | 持续日数/d | ||
| 同心 | 2007-05-01 | 2007-06-15 | 47 | 2007-06-17 | 2007-07-15 | 29 | 2 |
| 银川 | 2011-06-08 | 2011-08-14 | 98 | 2011-09-02 | 2011-09-15 | 14 | 19 |

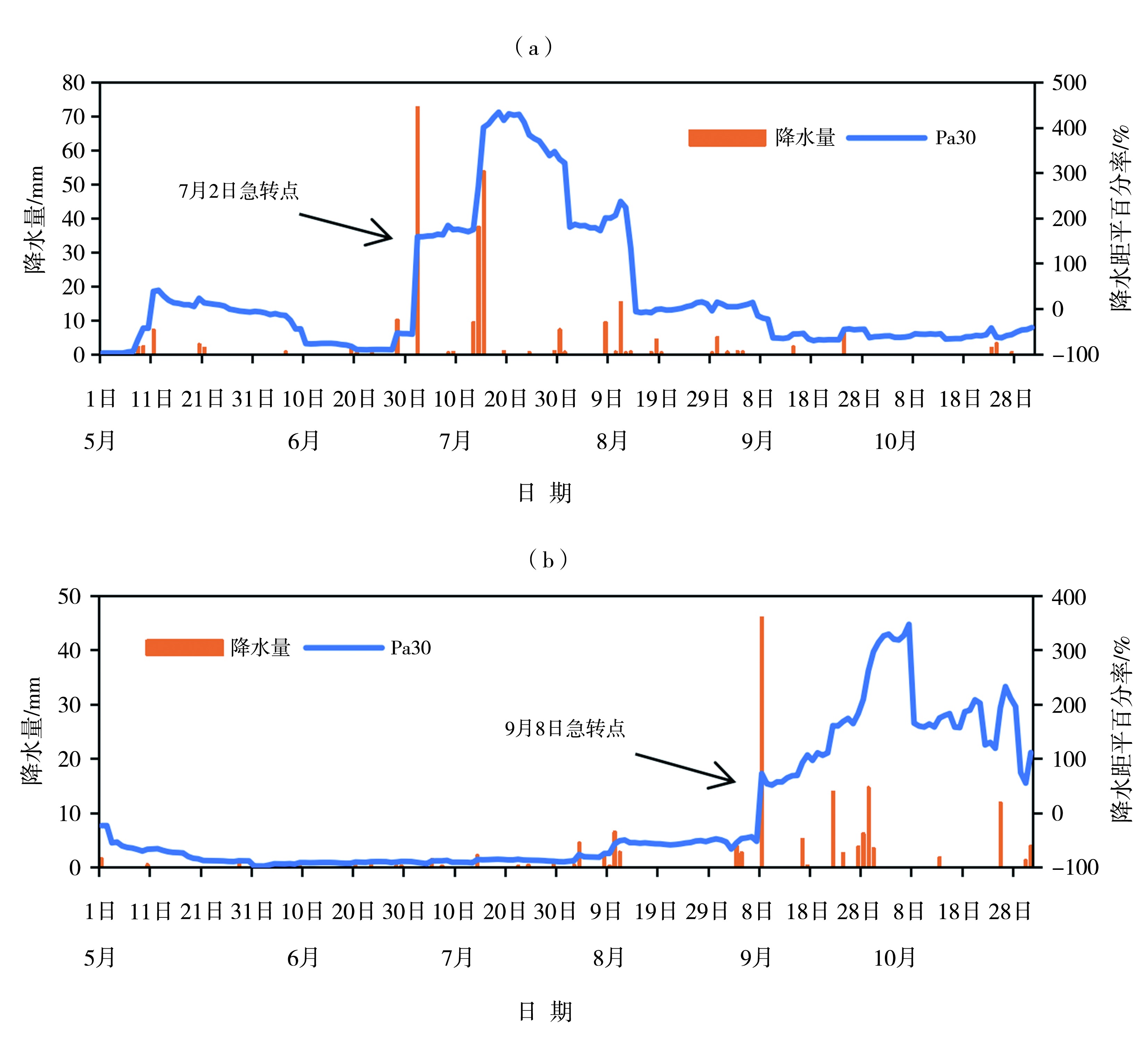

Fig.4 Daily variations of precipitation and Pa30 at Tongxin Station from May 1 to September 30, 2007 (a) and at Yinchuan Station from May 1 to September 30, 2011 (b)
Fig.6 Spatial distribution of cumulative occurrence frequency (a, Unit: times) and frequency (b, Unit: %) of drought-flood abrupt alternation events in Ningxia from 1961 to 2023

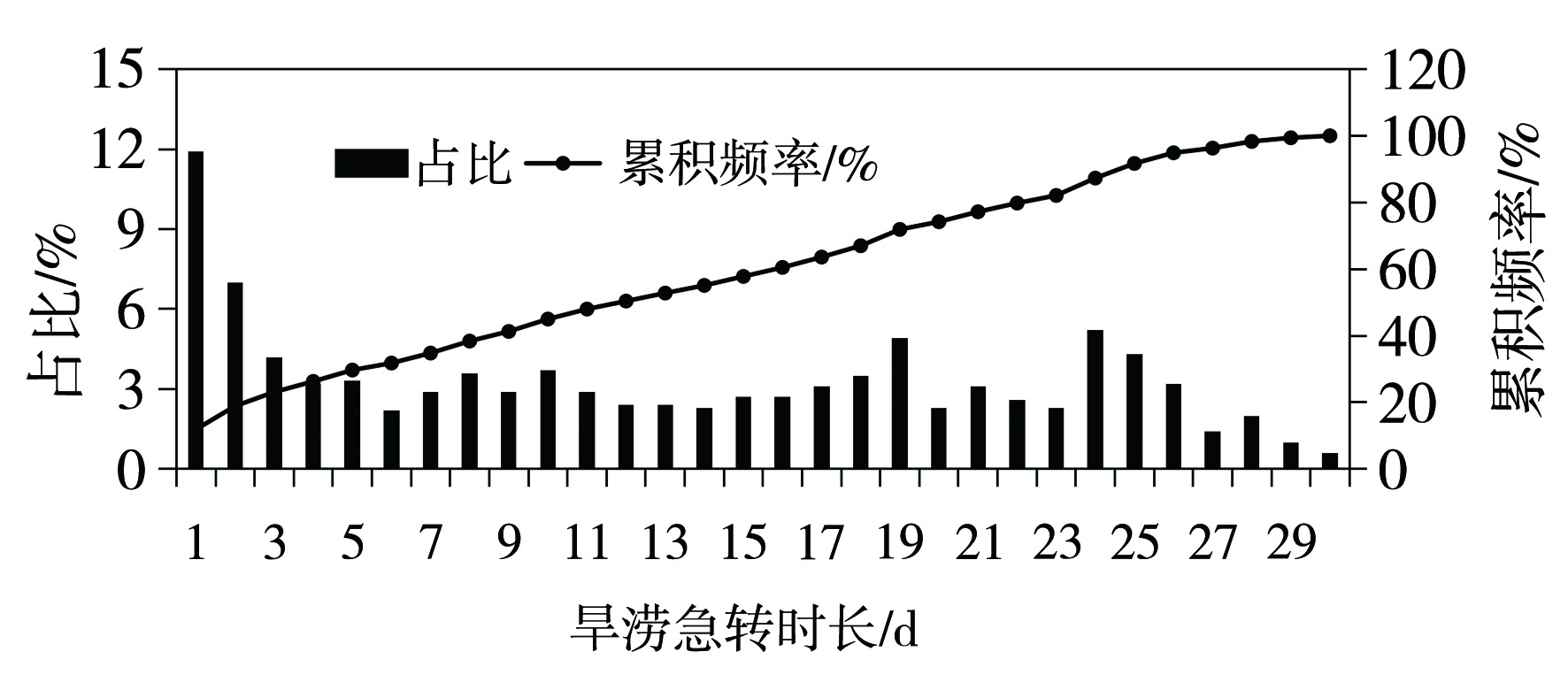

Fig.9 Proportion of drought-flood abrupt alternation events with different transitions duration and their cumulative frequencies in Ningxia from 1961 to 2023
| 等级 | 北部引黄灌区 | 中部干旱带 | 南部山区 |
|---|---|---|---|
| 重度 | 6.9 | 2.3 | 0 |
| 中度 | 30.1 | 16.8 | 11.6 |
| 轻度 | 63.0 | 80.9 | 88.4 |
Tab.6 Proportion of drought-flood abrupt alternation events of different grades in different ecological functional zones of Ningxia from 1961 to 2023
| 等级 | 北部引黄灌区 | 中部干旱带 | 南部山区 |
|---|---|---|---|
| 重度 | 6.9 | 2.3 | 0 |
| 中度 | 30.1 | 16.8 | 11.6 |
| 轻度 | 63.0 | 80.9 | 88.4 |

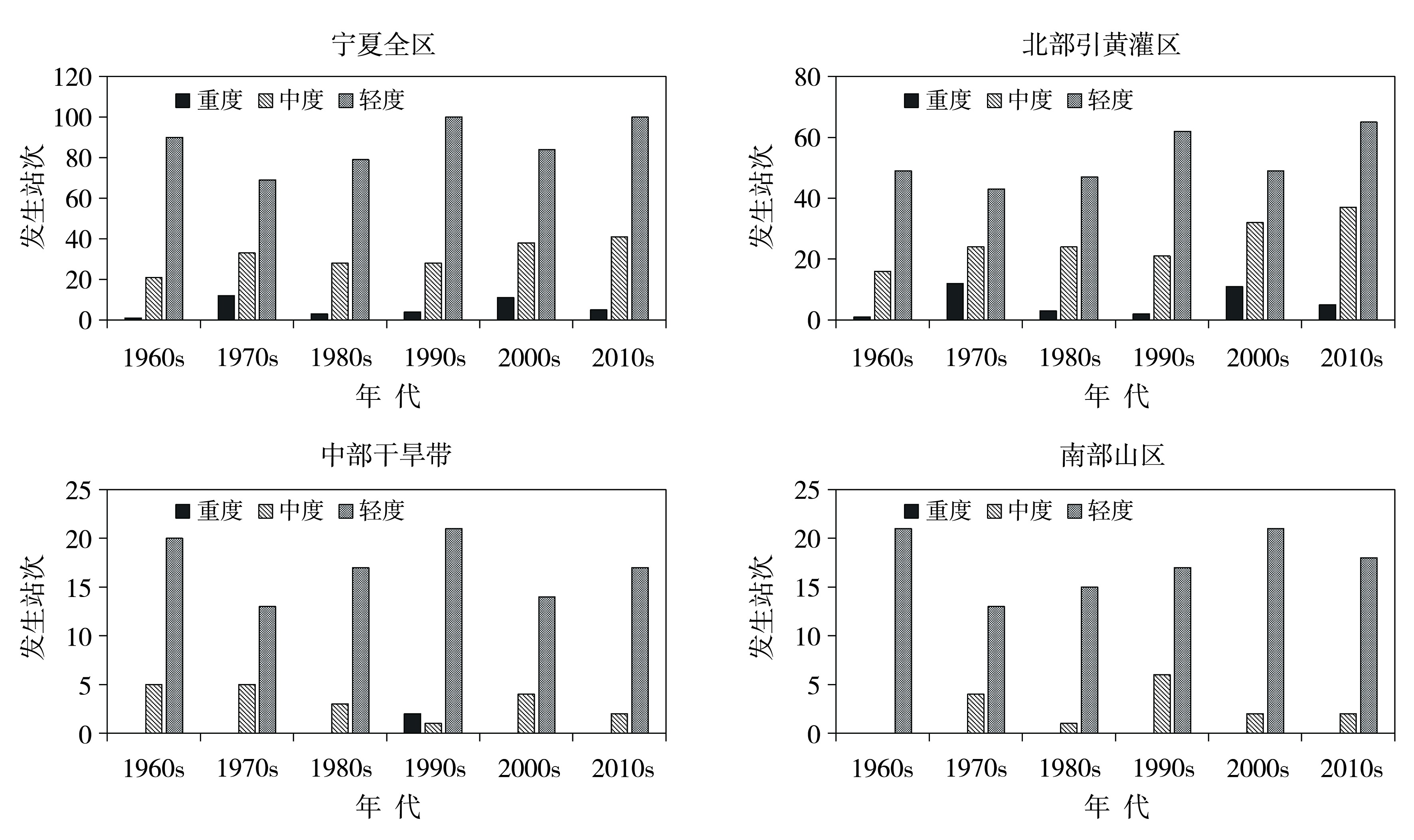

Fig.10 Interdecadal variations in the number of stations with drought-flood abrupt alternation events of different intensities in Ningxia and different ecological functional zones from 1961 to 2023
| [1] | 白虎志, 董安祥, 郑广芬, 等, 2010. 中国西北地区近500年旱涝分布图集(1470—2008)[M]. 北京: 气象出版社. |
| [2] | 李明, 祝从文, 庞轶舒, 2014. 2011年春夏季长江中下游旱涝急转可能成因[J]. 气象与环境学报, 30(4): 70-78. |
| [3] | 乔宇, 徐伟, 孟晨娜, 等, 2023. 旱涝急转事件研究: 进展与挑战[J]. 灾害学, 38(3): 133-138. |
| [4] |
闪丽洁, 张利平, 张艳军, 等, 2018. 长江中下游流域旱涝急转事件特征分析及其与ENSO的关系[J]. 地理学报, 73(1): 25-40.
DOI |
| [5] | 沈柏竹, 张世轩, 杨涵洧, 等, 2012. 2011年春夏季长江中下游地区旱涝急转特征分析[J]. 物理学报, 61(10): 530-540. |
| [6] | 孙鹏, 刘春玲, 张强, 2012. 东江流域汛期旱涝急转的时空演变特征[J]. 人民珠江, 33(5): 29-34. |
| [7] | 孙小婷, 李清泉, 王黎娟, 2017. 我国西南地区夏季长周期旱涝急转及其大气环流异常[J]. 大气科学, 41(6): 1 332-1 342. |
| [8] | 陶诗言, 徐淑英, 1962. 夏季江淮流域持久性旱涝现象的环流特征[J]. 气象学报(1): 1-10. |
| [9] | 宁夏回族自治区气象局, 2022. 宁夏气象志(1991—2020年)[M]. 北京: 气象出版社. |
| [10] |
王素萍, 张存杰, 宋连春, 等, 2013. 多尺度气象干旱与土壤相对湿度的关系研究[J]. 冰川冻土, 35(4): 865-873.
DOI |
| [11] |
王素艳, 李欣, 王璠, 等, 2021. 宁夏降水资源格局演变特征[J]. 干旱区研究, 38(3): 733-746.
DOI |
| [12] |
王素艳, 郑广芬, 李欣, 等, 2013. CI综合气象干旱指数在宁夏的本地化修正及应用[J]. 干旱气象, 31(3): 561-569.
DOI |
| [13] | 吴志伟, 李建平, 何金海, 等, 2006. 大尺度大气环流异常与长江中下游夏季长周期旱涝急转[J]. 科学通报, 51(14): 1 717-1 724. |
| [14] | 夏普明, 2007. 中国气象灾害大典·宁夏卷[M]. 北京: 气象出版社. |
| [15] | 谢五三, 唐为安, 宋阿伟, 2019. 多时间尺度SPI在安徽省气象干旱监测中的适用性研究[J]. 气象, 45(11): 1 560-1 568. |
| [16] | 杨家伟, 陈华, 侯雨坤, 等, 2019. 基于气象旱涝指数的旱涝急转事件识别方法[J]. 地理学报, 74(11): 2 358-2 370. |
| [17] | 杨金虎, 孙兰东, 林婧婧, 等, 2015. 西北东南部夏季旱涝急转异常分析及预测研究[J]. 自然资源学报, 30(2): 282-292. |
| [18] | 杨艳娟, 谢均, 杨劲, 等, 2026. 基于REOF分区的海河流域旱涝急转事件时空特征分析[J]. 灾害学, 41(2): 47-55. |
| [19] |
张雯, 马阳, 王素艳, 等, 2023. 西北地区东部春夏季旱涝转换环流特征及其与大西洋海温的关系[J]. 干旱气象, 41(1): 14-24.
DOI |
| [20] | 郑广芬, 冯建民, 马宏永, 等, 2012. 宁夏7月严重干旱事件的成因分析[J]. 干旱气象, 30(3): 332-338. |
| [21] | FIELD C B, BARROS V, STOCKER T F, et al, 2012. Managing the risks of extreme events and disasters to advance climate change adaptation: Special report of the intergovernmental panel on climate change[M]. Cambridge: Cambridge University Press. |
| [22] |
FORD T W, CHEN L, SCHOOF J T, 2021. Variability and transitions in precipitation extremes in the Midwest United States[J]. Journal of Hydrometeorology, 22(3): 533-545.
DOI URL |
| [23] |
FU G B, YU J J, YU X B, et al, 2013. Temporal variation of extreme rainfall events in China, 1961-2009[J]. Journal of Hydrology, 487: 48-59.
DOI URL |
| [24] | HE X G, SHEFFIELD J, 2020. Lagged compound occurrence of droughts and pluvials globally over the past seven decades[J]. Geophysical Research Letters, 47(14):e2020GL 087924. DOI: 10.1029/2020GL087924. |
| [25] |
LU E, CAI W Y, JIANG Z H, et al, 2013. The day-to-day monitoring of the 2011 severe drought in China[J]. Climate Dynamics, 43(1/2): 1-9.
DOI URL |
| [26] |
MALLET J, FORTIN G, GERMAIN D, 2018. Extreme weather events in northeastern New Brunswick (Canada) for the period 1950-2012: Comparison of newspaper archive and weather station data[J]. The Canadian Geographer/Le Géographe canadien, 62(2): 130-143.
DOI URL |
| [27] | QING Y M, WANG S, YANG Z L, et al, 2023. Soil moisture-atmosphere feedbacks have triggered the shifts from drought to pluvial conditions since 1980[J]. Communications Earth & Environment, 4: 254. DOI:10.1038/s43247-023-00922-2. |
| [28] | RAHMANI V, HUTCHINSON S L, HARRINGTON J A Jr, et al, 2016. Analysis of frequency and magnitude of extreme rainfall events with potential impacts on flooding: A case study from the central United States[J]. International Journal of Climatology, 36(10): 3 578-3 587. |
| [29] | SHUKLA S, WOOD A W, 2008. Use of a standardized runoff index for characterizing hydrologic drought[J] .Geophysical Research Letters, 35(2): L02405. DOI: 10.1029/2007GL032487. |
| [30] |
TAN X Z, WU X X, HUANG Z Q, et al, 2023. Increasing global precipitation whiplash due to anthropogenic greenhouse gas emissions[J]. Nature Communications, 14: 2796. DOI:10.1038/s41467-023-38510-9.
PMID |
| [31] | VICENTE-SERRANO S M, BEGUERÍA S, LÓPEZ-MORENO J I, 2010. A multiscalar drought index sensitive to global warming: The standardized precipitation evapotranspiration index[J]. Journal of Climate, 23(7): 1 696-1 718. |
