一次阵风锋及锋后极端大风的多种型号雷达观测特征分析

沈晓玲, 岑璐琳, 章超钦, 章唯薇

Analysis of multi types radar products characteristics of a gust front and the extreme wind after the gust front

SHEN Xiaoling, CEN Lulin, ZHANG Chaoqin, ZHANG Weiwei

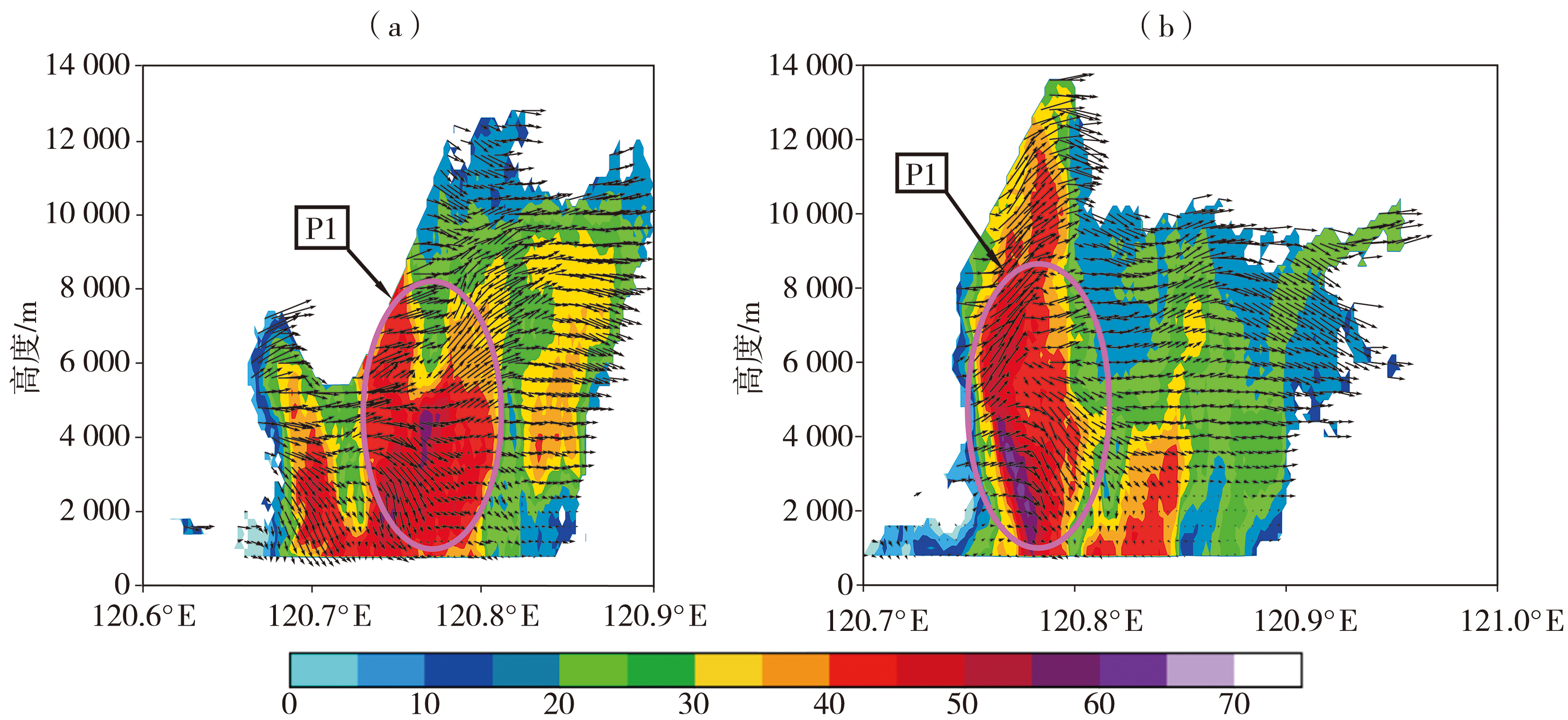

图9 2023年7月10日15:38（a）、15:50（b）X波段相控阵雷达组合反射率因子（填色，单位：dBZ）和反演风场（箭头，单位：m·s-1）沿29.75°N的经度-高度剖面

Fig.9 The longitude-height sections of combination reflectivity factor (the color shaded, Unit: dBZ) and retrieved wind field (arrows, Unit: m·s-1) of X-band phased-array radar along 29.75°N at 15:38 （a）、15:50 （b）on 10 July 2023
